Semi servo adult diaper making equipment

FOB Reference Price:Get Latest Price
US $300,000-800,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Product Type:
Diaper Machine
Processing Type:
machine manufacturing
Place of Origin:
Fujian, China (Mainland)
Brand Name:
YITAI
Model Number:
YTXF-300CRNK-SF-DD
Voltage:
380v,50Hz
Power(W):
420kw
Dimension(L*W*H):
33 x 12 x 5 m
Weight:
30 T
Certification:
CE,ISO,BV
Product Name:
Full servo Adult diaper machine
product specification:
M L XL
Designed speed:
300pcs/min
Qualified speed:
150-300pcs
color:
as per customer's request
Factory space:
48 x 14 x 6m (can be designed per factory map)
Container:
2 x 40 HQ
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 year and half
Supply Ability
Supply Ability:
100 Set/Sets per Year
Packaging & Delivery
Packaging Details
Wooden box for adult diaper machine
Port
XIAMEN
Lead Time :
150days afterorder placed



Product Description

YTXF-300CRNK-SF-DD Half servo Adult Diaper Machine

This diaper making machine can produce both Fluff pulp type & Ultrathin  diaper products, main parameter as below :

Designed Speed300pcs/min
Stable Production Speed150-200pcs/min
Production Line Center Distance300mm(the distance from the material center line to the rack-mounted panel)
Distribution of Raw Materialtop(surface)-absorption layer bottom-cloth like non-woven
The Deviation of Products Weight±1.5g
Rate of Finished Products≥97% (not including rejected baby diapers at the glue applicator,splicing and jointing material stations)
Production Machine Efficiency≥85%
Power Supply380V 50HZ
Power Consumption300KW (reference)(not including the glue applicator station and the air compressor)
Electric Supply380V ±  5%,50HZ, (3 phase,for wire plus ground)
Compressed Air Supply Pressure

0.6-0.8Mpa (air supplier provided by buyer)

Overall Machine Dimensions(Stacker excluded)

27m(L) *4m(W)*3.8m(H) (reference)

weight 30-40 metric tons

Equipment Process Flowto be defined by customer

Machine detail image :

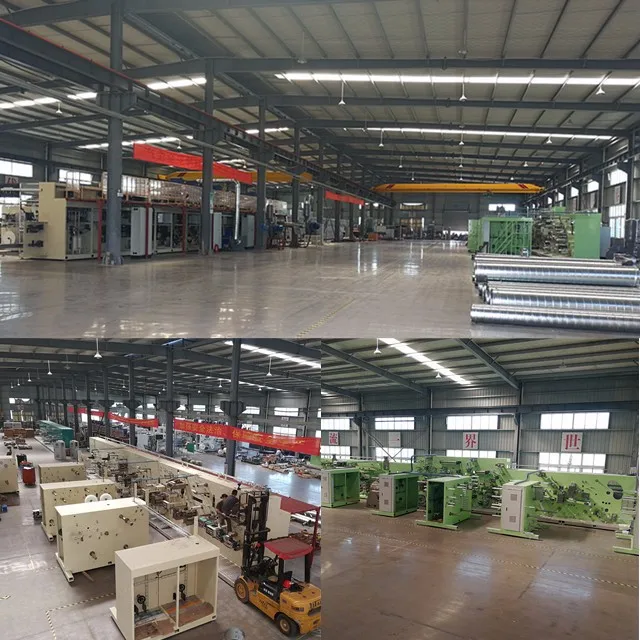

CNC processing by ourselves  for Key mechanical parts of diaper making machine

Diaper making machine Produced diaper products

Raw materials for products  producing by diaper  making machine

Diaper making machine process flow Chart

 1.   Touch screen control system, Man-machine interface & Graphical manipulation;
2.   Servo motor adopted for machine drive & PLC control;
3.   Teeth-like crusher;
4.   Cotton core is remolding and then forming;
5.   SAP automatic quantitative applied;
6.   Active unwinding, constant tension control and auto splicing are adopted for raw materials;
7.   Auto detecting & alarm when material ending or breaking; auto reject for material spl ices;
8.   Phase could be adjusted during running without stop;
9.   Column structure frame for rotary cutters
10.   Finished products Tri-folding;
11.   Applying centre of the side tape is adjustable;
12.   Diaper auto counting & bagging

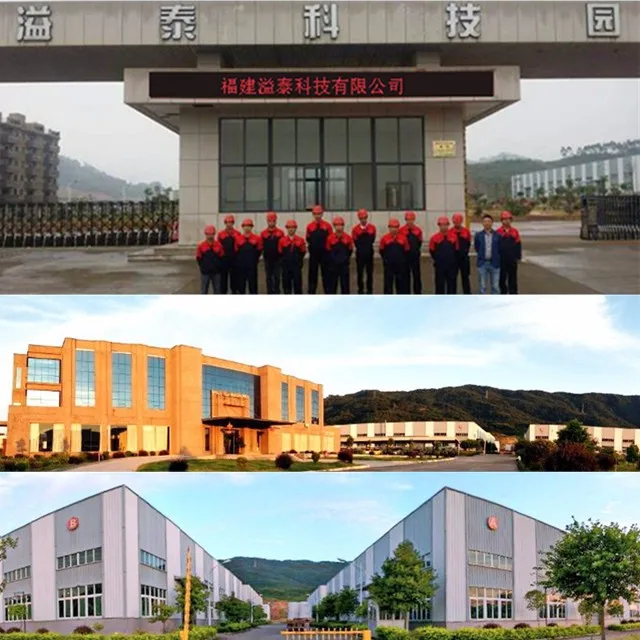

Company Information

 Main machinerys:

  • Baby diaper machine,
  • Woman sanitary napkin machine,
  • Adult diaper machine,
  • Spill pads machine ,
  • Under pads machine
  • and relative accessories.








Packaging & Shipping

Packaing and Shipping

Wooden Rack and PE film to be wraped for Diaper Making Machine

FAQ

FAQ about our company and machines, welcome question us

1. Are you a manufacturer or trading company ?

We're a machine manufacturer.



2. Textile machines are your main products in Alibaba, do you have your professional

hygiene products machine website?

Yes, www.diaper-macinery.com

As we areYITAI GROUP, textile machines are made in factory Jinjiang YITAI, hygiene products

machines are made in factory Zhangping YITAI,they are both our main products , while our head

quarter is Xiamen YITAI.

3. What's your Advantages in comparison to the other competitors ?

Our diaper making machine advatages on the poducing process of your diaper  products :

1.  Various Speed  ( Automatic/Full-servo/ Semi-servo system) options and high quality  given as per individule requirements to maximizing your benefits .

2. All key machining parts are CNC made by our own factory - Quality guaranteed with low repair rate make you a stable production.

3. Applied dumbell device to the Cotton forming system to prevent bandy legs caused, add an extra selling points for your product.

4. Remote assistance dealing with software problem to give you the efficient after-sale service with no production delayed.

5-.Professional team with 17 years experience,available to various type & appropriate scheme for different countries.

4. Do you have any branches in the worldand how do you guarantee your quality ?

Yes, there are 7 branches in different countries.

Our machine guarantee is 1 year, for settling the problems online or on live in limited time,

with spare parts free for exchanging and our engineers will provide technical support for life long.

Our Services

Excellent After-sale Service

-  Guarantee: One year .



- One set of consumable accessories will be provided with the machine.



- Before delivery, we will testing the machine according to required speed which specified on our contract.



- Any question you can mail / call us at any time, our most experienced engineers are asisigned to give consulting service ,and always available for dispatching abroad





What service can be provided for training your workers?



1- We can assist you in hiring experienced staffs if need.





2- Your technician can come to our factory for 1-2 months training about the operation,testing

and maintenance before machine installation in our factory



3- Your workers can be trained during our technician install and test the machine in

your  factory.





What service can be offered for finding a reliable raw material suppliers?



1- We can support you in finding suppliers of high quality raw materials in our or your

 local market.





2- We will go with you for a visit to these factories in China.



We are available for your question  within 24 hours  .
